Nodal Ninja
5 Beta Preview |
|
|
|
Model: |
NN5
|
|
VR Head Type: |
Multi-Row Spherical Panoramic Tripod Mount |
|
Weight: |
1.89 lb (0.86kg) |
|
Dimensions: |
7.8" x 9" x 7.5" |
|
Load Capacity: |
10 kg w/ locks, 5-7 kg without |
|
Color: |
Matte Black |
|
Material: |
Aluminum |
|
Large Bodied DSLRs / Medium Format
Compatibility: |
Yes |
|
Leveling: |
Bubble |
|
Numerical Demarcations: |
On rotational, vertical & rails. |
|
Bottom Thread Attachment |
3/8", 1/4" |
|
Rotator head adjustments: |

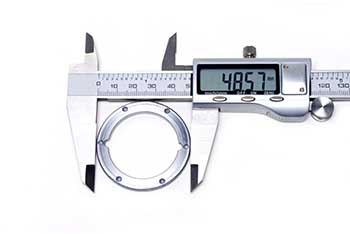

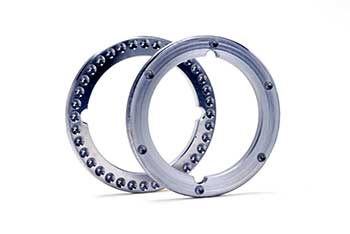

Detent rings |
|
Vertical Arm Rotation: |
360° |
|
Panoramic Rotation: |
360° |
|

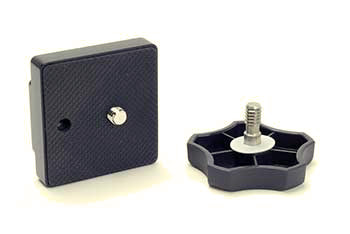

Camera Quick Release: |

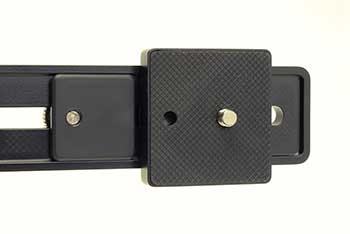

Yes. New camera plate allows for use
of quick release plates |
|
Upper arm detent stop: |
Yes |
|
Landscape Mode: |
Yes |
|
Tools Required For Assembly: |
Yes |
|
Warranty: |
TBD |
|
Tools Supplied: |
1 hex key |
|

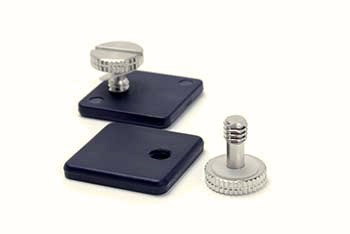

Spare Parts Supplied: |
Yes |
|
Case Supplied: |
TBA |
|
Accessories Available: |
TBA |
|
Upgrade: |
TBA |
|
Customer Support: |
Yes |
|
Manual: |
Yes |
|
Suggested Price: |
US $349.95 (introductory offer) |
|
Web site: |
http://www.nodalninja.com |
|
|
|
|
|
Pre-Orders has been temporarily suspended |
|
|
|
|
|
|

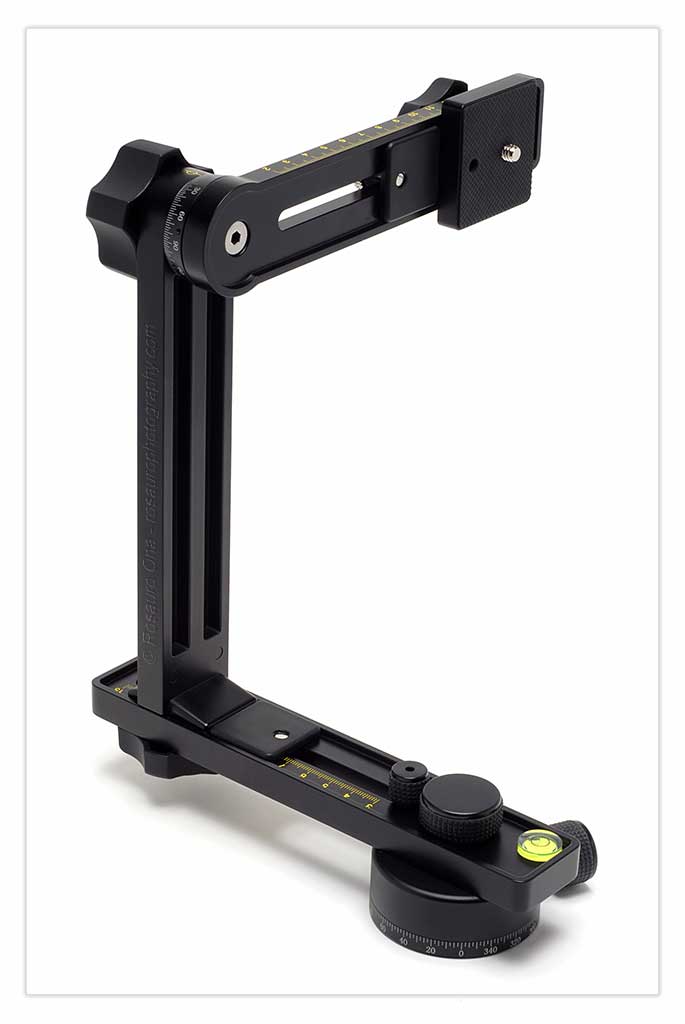

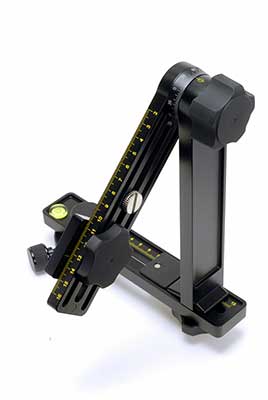

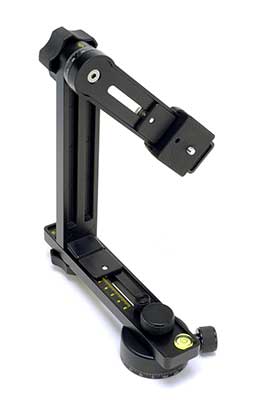

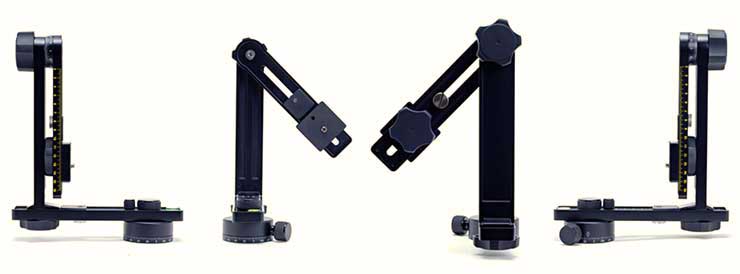

Various views |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

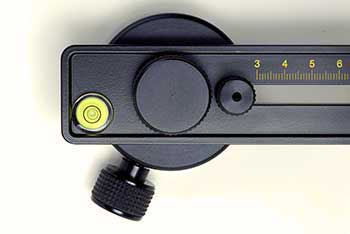

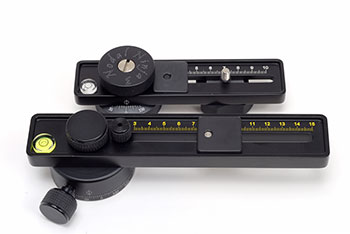

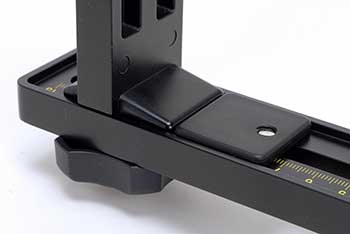

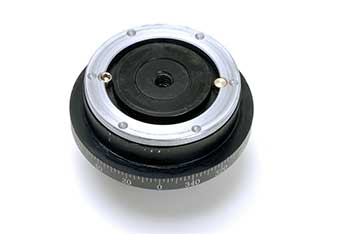

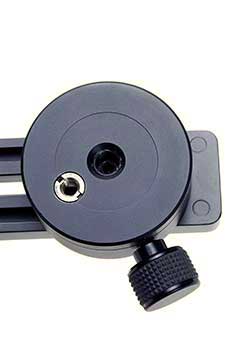

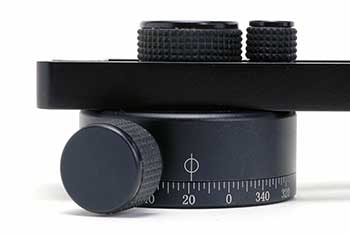

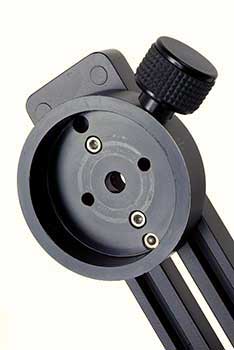

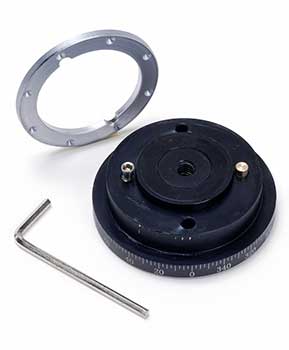

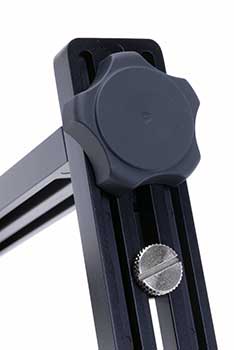

Rotator Base and Lower Rail |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

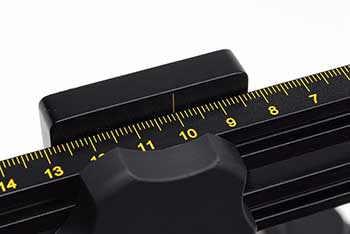

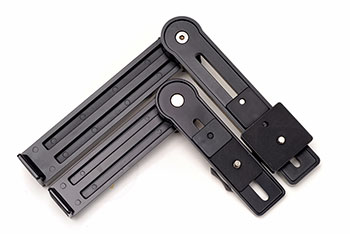

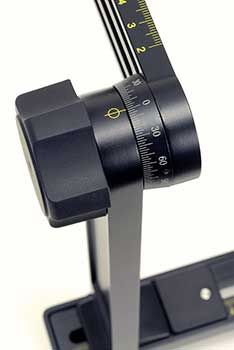

Vertical Rail and Upper Arm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Set-ups |
|
|
|
|
|
|
|

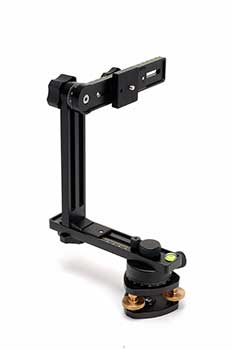

NN5 & EZ Leveler |

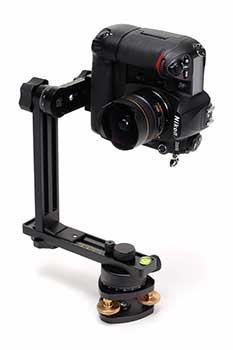

D200 on NN5 &
EZ Leveler |
|
|
|
|
|
|
|
|
|

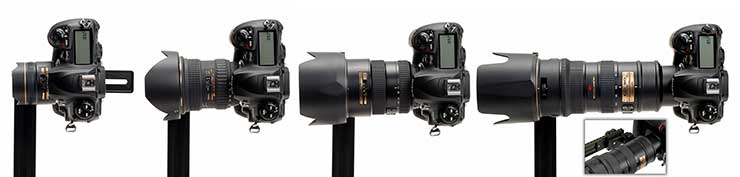

D200 w/ 10.5 mm Fisheye, 12-24mm, 17-55mm
and 70-200mm |
|
|
|
|
|
|
|
|
|
|

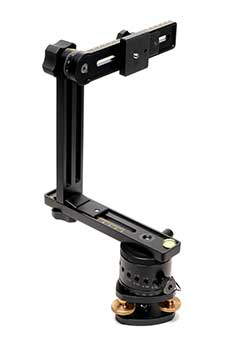

NN5 with Manfrotto 300N |

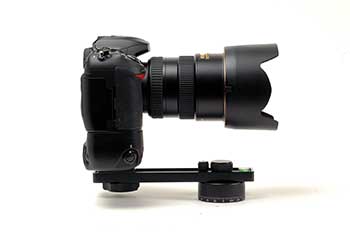

17-55mm in
landscape |
|
|
|
|
|
|
|
|
|

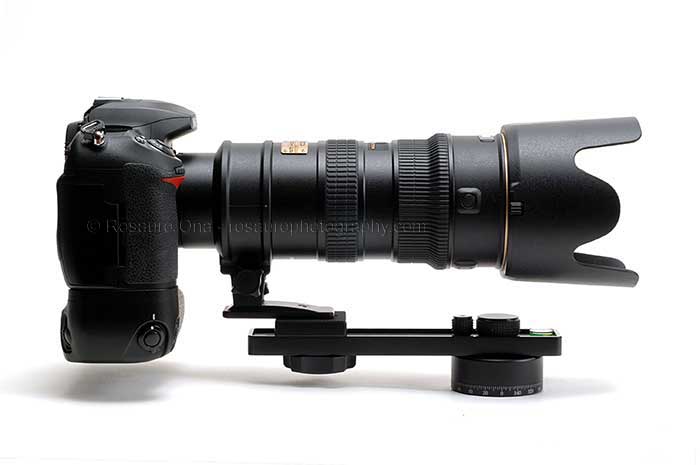

70-200mm in landscape |
|
|
|
|
|
|
|
|
|

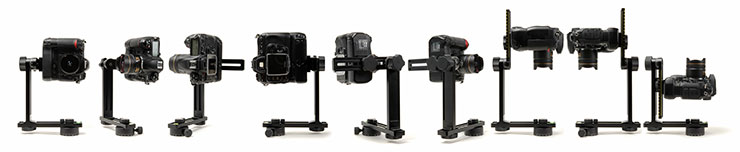

Sample NN5 360°x180° shoot
sequence |
|
|
|
|
|
|
|
|
|

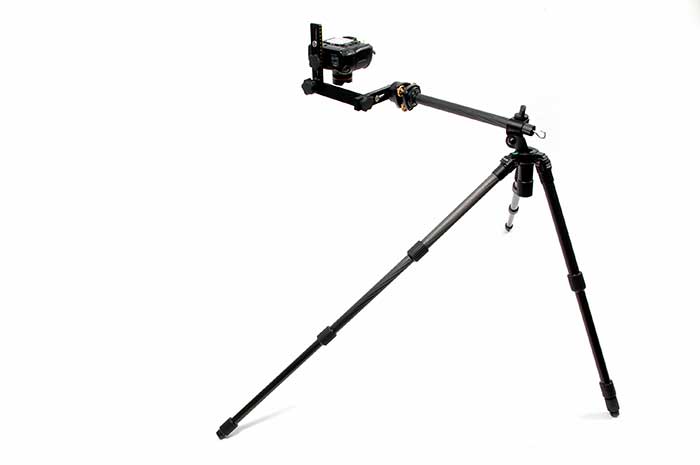

D200, NN5, EZ Leveler and Induro
CX214 tripod. With the ability to lock the rotator base
prevents the head from rotating during a long exposure nadir shot. |
|
|
|
|
|
|
|
|
|
Just like the NN3, with my long exposure technique,
is still
possible with the NN5. The camera plate just has to sit above
the rails. Use a bubble level to level the camera. |
|
|
|
|
|
|
|
|
|
|

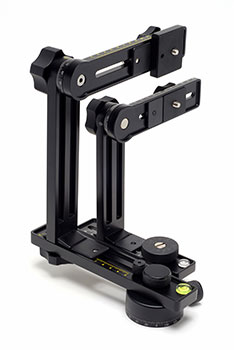

NN5 and NN3 size comparison |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
You may
contact me if you have any questions,
comments or suggestions regarding this review or found it helpful in
any way.
Thank you!
